1. Development

We received a request from a North American Chinese food chain store through a kitchen trading company to develop a machine that could cook a large amount of fried rice and stir-fried noodles. In addition, it was requested that the new machine can be integrated with the cooking range that is currently in use in their branches in order to save space.

2. Materials

• Thin sheet metal (SUS material)
• Resin (molding)
• Electrical components
• Microcomputer control
• Gas burner
• Gas pipings, etc.

3. Specifications

• Stir-fry a large amount of stir-fried noodles (7.5 kg) and fried rice (10.5 kg) for about 6 minutes to achieve the specified result (temperature and mixing)
• Control panel can be used to change the strength of the gas burner, the rotation speed of the pot, and the rotation speed of the stirring blade
• Store 10 cooking processes on the control panel memory

4. Manufacturing Process

At Daiwa Seiko, the following process is carried out :

Parts Procurement　➡　Parts Inspection　➡　Assembly 　➡　Finished Product Inspection　➡　Shipment

5. Certification

To fulfill the client’s request, Daiwa Seiko’s factory complies with the following certification:

• North American Standard – ETL (Electrical Safety/Sanitation)

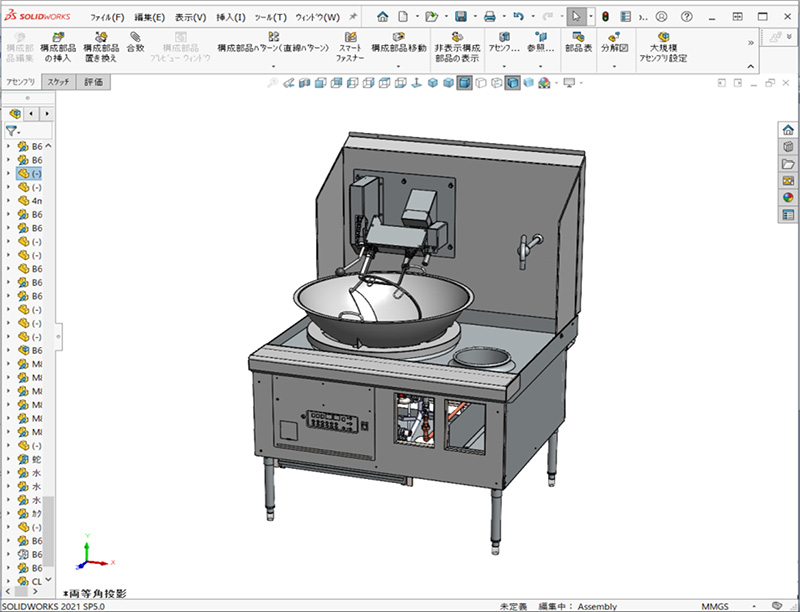

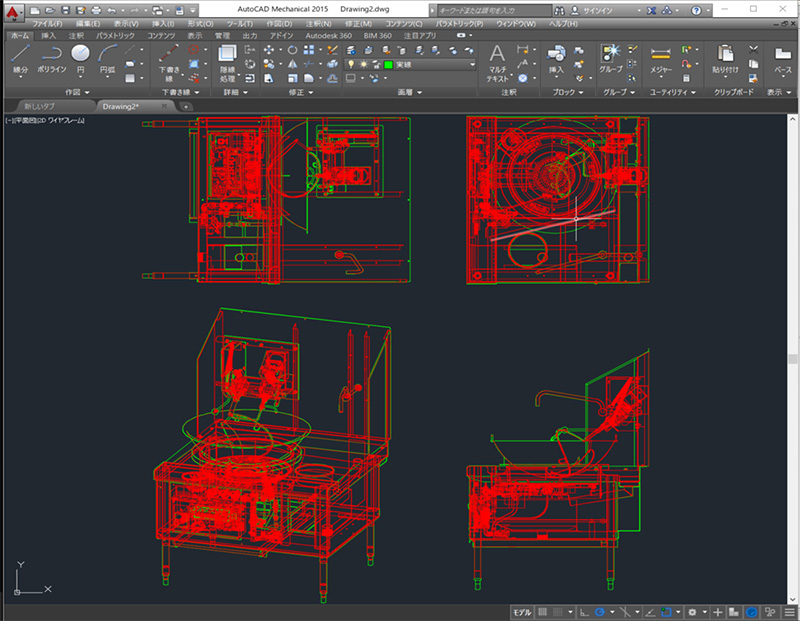

6. CAD Software Used
